Interface for Kenwood TM-201

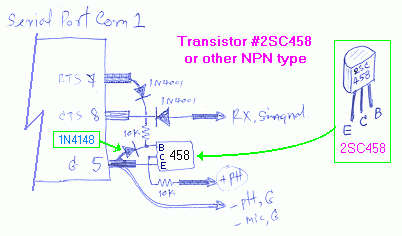

 Carrier interface for TM-201

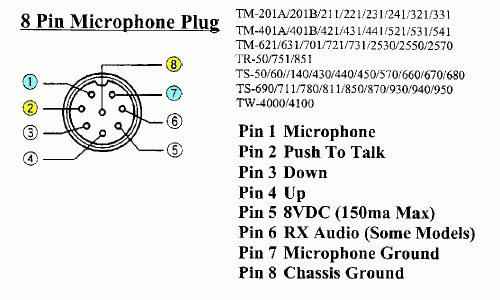

 Detail at DB-9 Port

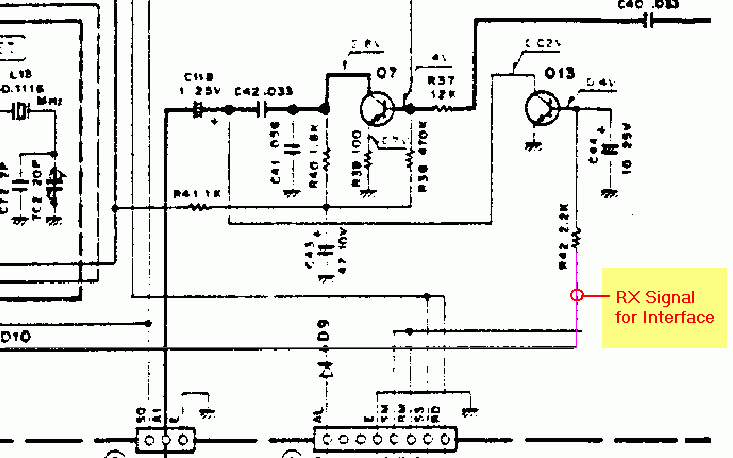

  Circuit Diagram of TM-201

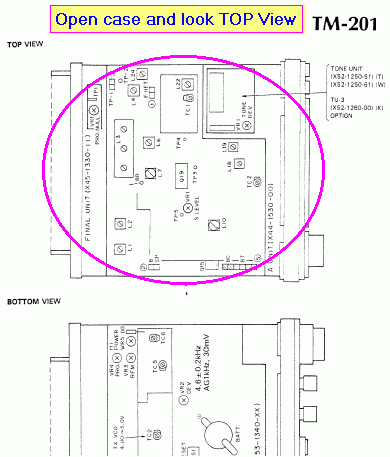

 Detail of case TM-201

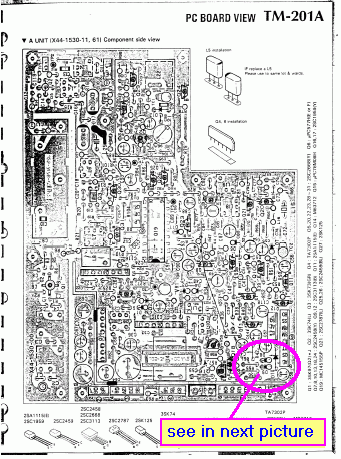

 PC Equipment Board view

 Zoom for PC Equipment Board view

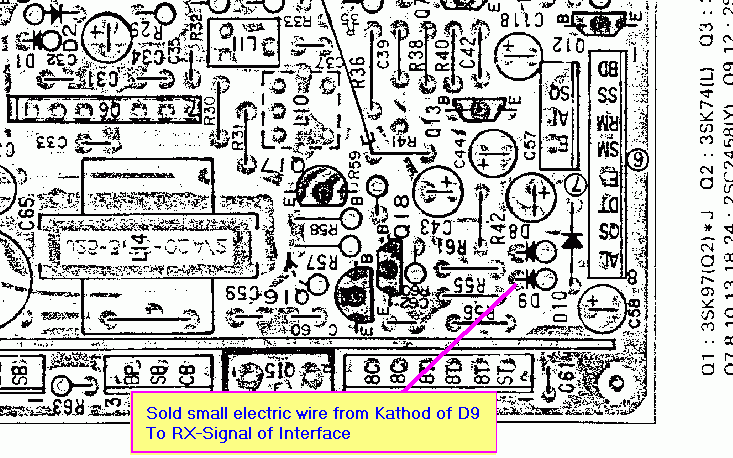

 at RX-signal point (pin Kathod of D9)

and some setting in Eccholink program

from  MENU  select  Tools   and select  Syspo Setting

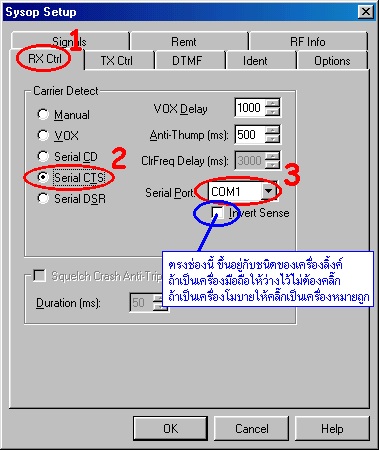

at  RX Ctrl  tab look from picture

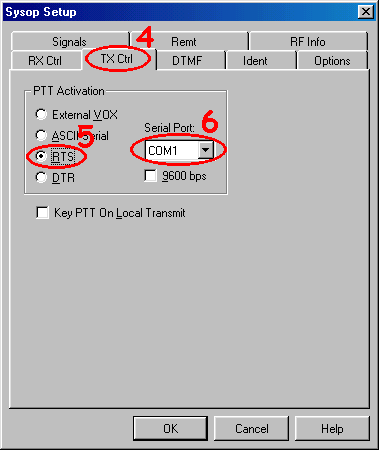

at  TX Ctrl  tab look from picture

@ - - HS9DMC - - @
